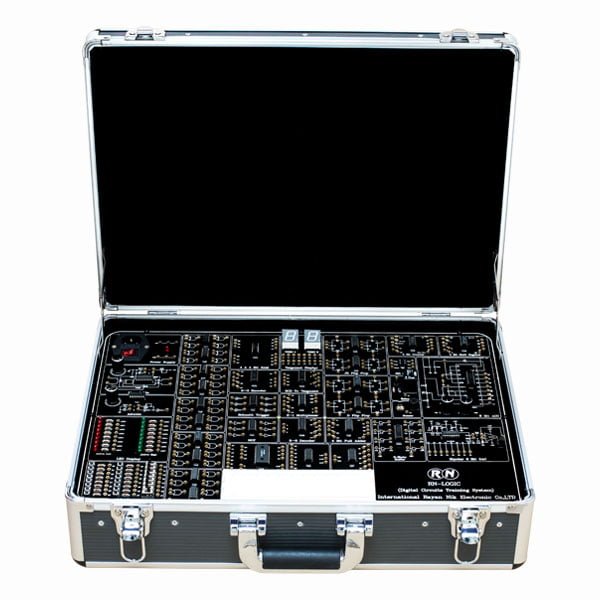

RN-LOGIC Digital circuit training system

Experiments

• Study the operation of AND, OR, NOT, NAND, NOR & XOR gates
• Make other gates using NAND gate
• Make a XNOR gate using NOT & XOR gates
• Study of BCD to GRAY converter
• Study of GRAY to BCD converter
• Study of 3-state buffer based on 74244
• Study of BCD to 7segment
• Make a 2 to 4 decoder using the gates
• Study of 3 to 8 decoder based on 74238
• Study of 8 to 3 encoder based on 74148
• Make a 4 to 1 multiplexer using the gates
• Study of 8 to 1 multiplexer based on 74151
• Make a half and full adder using the gates
• Make a full-adder using a decoder
• Study of 4-bit adder/subtractor based on 7483
• Make a 1-bit comparator using the gates
• Study of 4-bit comparator based on 7485
• Make a RS flip-flop with CLK input using the gates
• Make a D flip-flop with CLK input using the gates
• Make a JK flip-flop with CLK input using the gates
• Make a T flip-flop with CLK input using the gates
• Study of D flip-flop based on 7474
• Study of JK flip-flop based on 7476
• Make a synchronous up/down counter using D and JK flip-flop and the gates
• Make a Asynchronous up/down counter using D and JK flip-flop and the gates
• Study of preset and clear inputs
• Make a Johnson and ring counter using D and JK flip-flops and the gates
• Make a up/down counter using 74191
• Make a 4-bit shift register using D flip-flops
• Make a 4-bit shift register using 74195
• Make a square oscillator using 555 timer
• Make a A-stable multivibrator using 555 timer
• Make a Mono-stable multivibrator using 555 timer
• Study of analog to digital converter based on ADC0804
• Study of uni-polar digital to analog converter based on DAC0800
• Study of bi-polar digital to analog converter based on DAC0800
