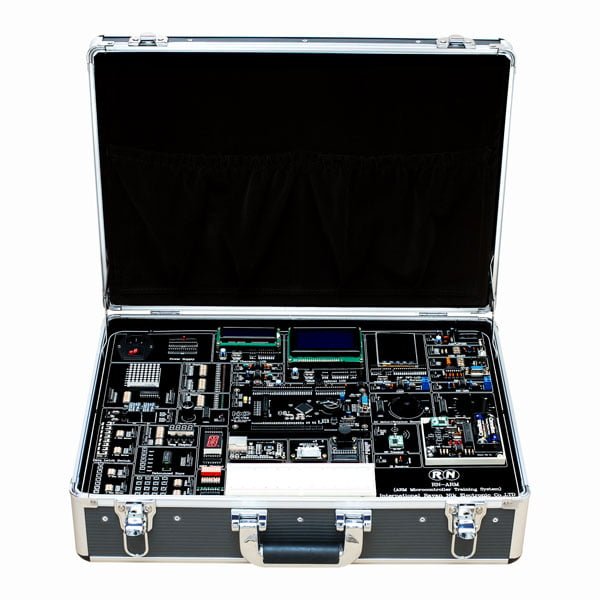

RN-ARM ARM Microcontroller Training System

Experiments

• Turn on and turn of the GPIOs of LPC1768
• Study of direction registers of LPC1768
• Study of mask registers of LPC1768
• Study of pull up/down registers of LPC1768
• Turn on and turn of the active high and active low LEDs
• Setting up the stepper motor
• Display the numbers and letters on dot-matrix
• Display the numbers and letters on HEX display
• Make a 4 bit counter on multiplexed 7-segment
• Setting up the character LCD
• Setting up the graphical LCD
• Setting up the color LCD
• Setting up the internal PWM block and use it for DC motor driving
• Measure the speed and angular position of DC motor using shafted encoder sensor
• Setting up the internal ADC and use it in order to make a thermometer with LM35 sensor
• Setting up the internal digital to analog converter and use it to make a sine and triangle wave oscillator
• Setting up the internal SPI block and use it for connection between external ADC and DAC
• Setting up the internal UART block and use it for sending serial bits to MAX232 serial driver
• Make a wireless data connection using HM-TRP transmitter/receiver
• Make a wireless data connection using IrDA transmitter/receiver
• Read and write the information on external EEPROM
• Read and write the information on SD card
• Make an Ethernet network
