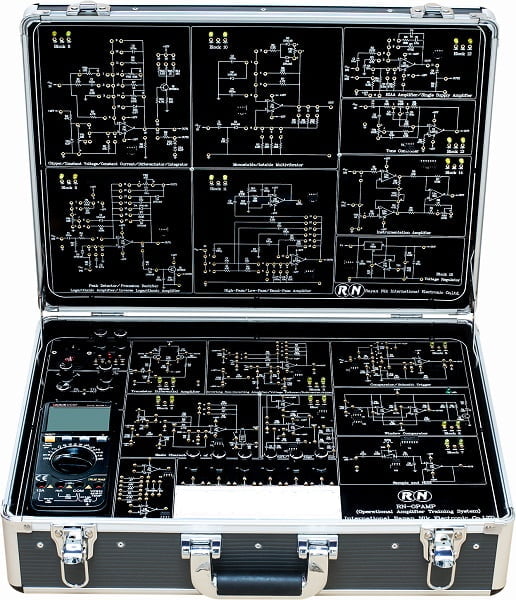

RN-OPAMP Operational Amplifier Training System

Experiments

• Study of differential amplifier and common mode and differential mode
• Measuring the input and output impedance of an amplifier
• Measuring the slew-rate value of an amplifier
• Measuring the bandwidth of an amplifier
• Adjusting the offset value of an amplifier
• Study of inverting and non-inverting amplifier
• Study of adder and subtractor circuits
• Study of constant voltage and constant current circuits
• Study of rectifier, clipper and peak detector circuits
• Study of buffer and comparator circuits
• Study of integrator and differentiator circuits
• Study of single supply amplifier
• Study of logarithmic and anti-logarithmic amplifers
• Study of sample and hold circuit
• Study of RIAA and instrument amplifier
• Study of low-pass, high-pass and band-pass filters (active filters)
• Study of fixed, adjustable and window comparators
• Study of a-stable and mono-stable multivibrators
• Study of Schmitt-trigger circuit
• Study of square-wave oscillator
• Study of phase-shift oscillator
• Study of Wien-bridge oscillator
