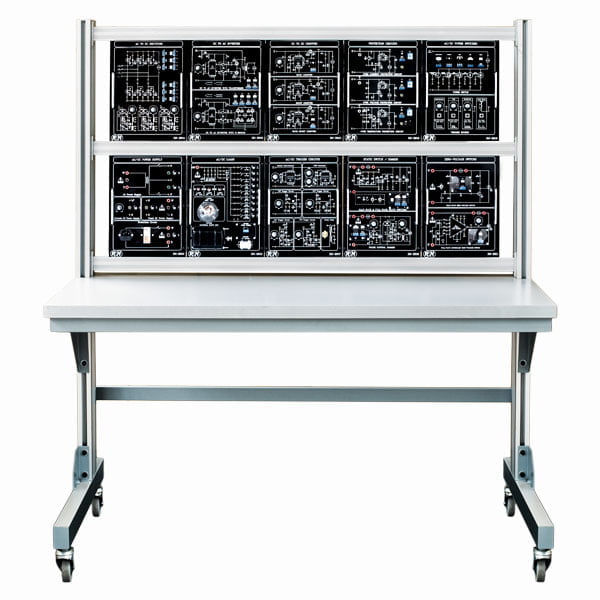

RN-600 Industrial Electronic Training System

1:1 isolated transformer at input of system in order to protection against electric shock
FI key (residual current device) at input of system in order to protection against electric shock
12v, 24v and 220v fixed AC power supply
0 to 15v variable and 12v fixed DC power supply
6v, 12v, 24v and 220v incandescent light bulb as lamp-load
12v dc motor and 220v universal motor as motor-load
Resistor load (3 range), capacitor load (3 range) and inductor load (3 range)
Transpulse, optocoupler and optotriac in order to isolation between trigger circuit and power circuit
Diode and thyristor rectifier circuit (AC to DC converter)
2 kind inverter (DC to AC converter)
3 kind chopper (DC to DC converter)
Protect circuits against over voltage, over current and over temperature
Zero-voltage switches
Dimmer circuits using Diac and Triac
AC and DC trigger circuit using UJT and PUT
AC and DC power switches (Power Darlington, Power MOSFET, IGBT, Triac and Thyristor)

Study of half wave and full wave rectifier based on Diode in 1 phase and 3 phase situation (uncontrollable rectifier)
Study of half wave and full wave rectifier based on Thyristor in 1 phase and 3 phase situation (controllable rectifier)
Study of half wave and full wave rectifier based on Diode and Thyristor in 1 phase and 3 phase situation (half-controllable rectifier)
Study of rectifier circuits with different loads (resistor, resistor and capacitor, resistor and inductor, lamp and motor)
Study of power Triac switch in AC signal
Study of power Darlington switch in DC signal
Study of power IGBT switch in DC signal
Study of power MOSFET switch in DC signal
Study of half wave and full wave static switch based on Thyristor
Study of trigger circuits based on PUT
Study of trigger circuits based on multivibrator
Study of trigger circuits based on PWM wave
Study of inverter circuit based on transformer
Study of inverter circuit based on IGBT H-bridge
Study of Buck chopper (DC to DC converter)
Study of Boost chopper (DC to DC converter)
Study of Buck-Boost chopper (DC to DC converter)
Study of zero voltage switch based on SCR
Study of zero voltage switch based on CA3059
Study of over voltage protection circuit
Study of over current protection circuit
Study of over temperature protection circuit
Study of isolation circuit based on optocoupler
Study of isolation circuit based on optotriac
Study of isolation circuit based on transpulse
